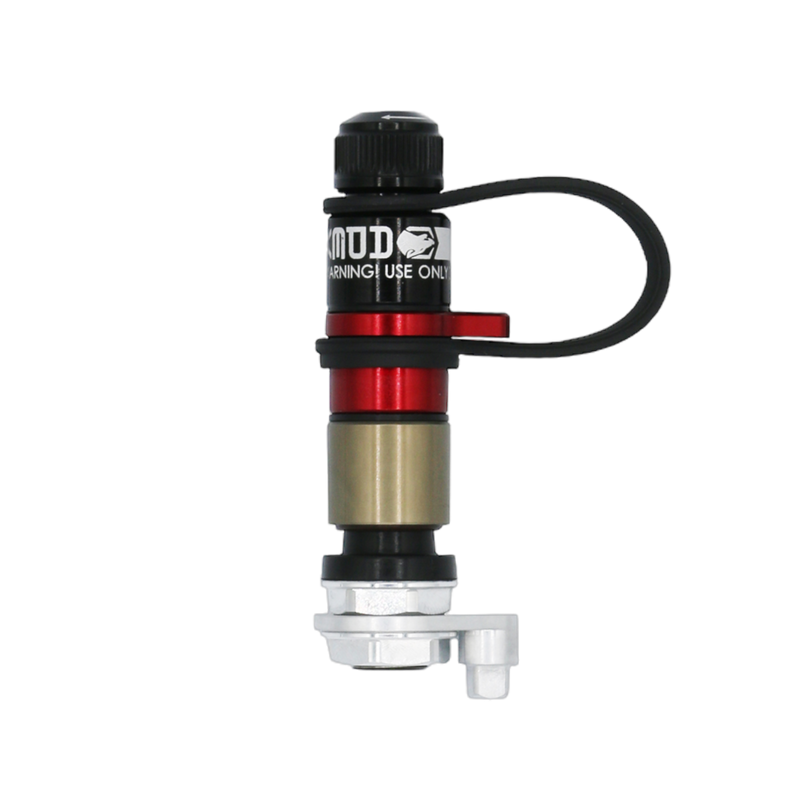

Rapid Precision Valve [XL]
SKU: X02-02-003 (Set of 4) / X02-02-004 (Single)
INSTRUCTIONS / CLEARANCE INFO
Set of 4 | Set of 5 | Single
This innovative, patent-pending fast deflation tire valve allows you to quickly dump street air pressure to your preferred off-road pressure.
[NOTE: This product is not compatible with AEV wheels]
The XL [extended length] is for wheels with a deeper valve stem well, such as some beadlock wheels. This RPV is for valve stem recesses more than 0.6" in depth.
Some examples of wheels that require the XL (measuring your specific wheel is always recommended, as there may be variations based on offset/diameter):
Black Rhino Rift
KMC 235 (Grenade)
KMC 229 (Machete)
Ford Raptor OEM wheels [seal flip needed for extra clearance]
Ford Bronco OEM wheels
- Unscrew the valve stem cover and place your preferred pressure gauge onto the valve.
- Now simply slide gate cover out and watch your air gauge real-time as the pressure drops.
- Slide the gate cover closed and replace the cap...you're done.
The toggle action allows you to precisely throttle the air to hit your exact desired pressure.
It’s fast...very fast. You can expect tire deflation from 35 PSI TO 10 PSI IN LESS THAN 15 SECONDS. [Based on a 35” tire]

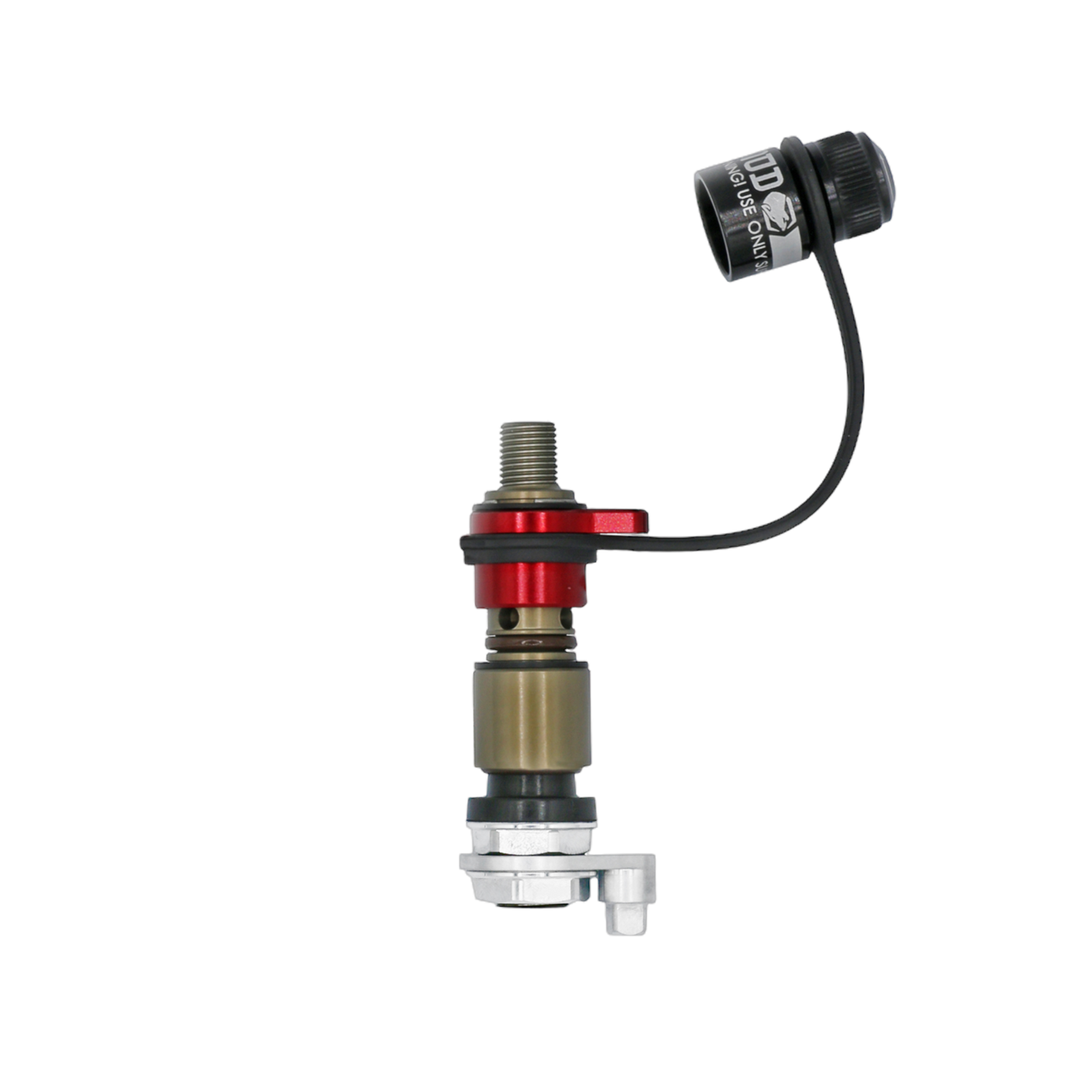

1) Toggle style vent
2) 1,000 hr salt spray
3) Viton seals are impervious to most any chemical and are UV/ozone resistant

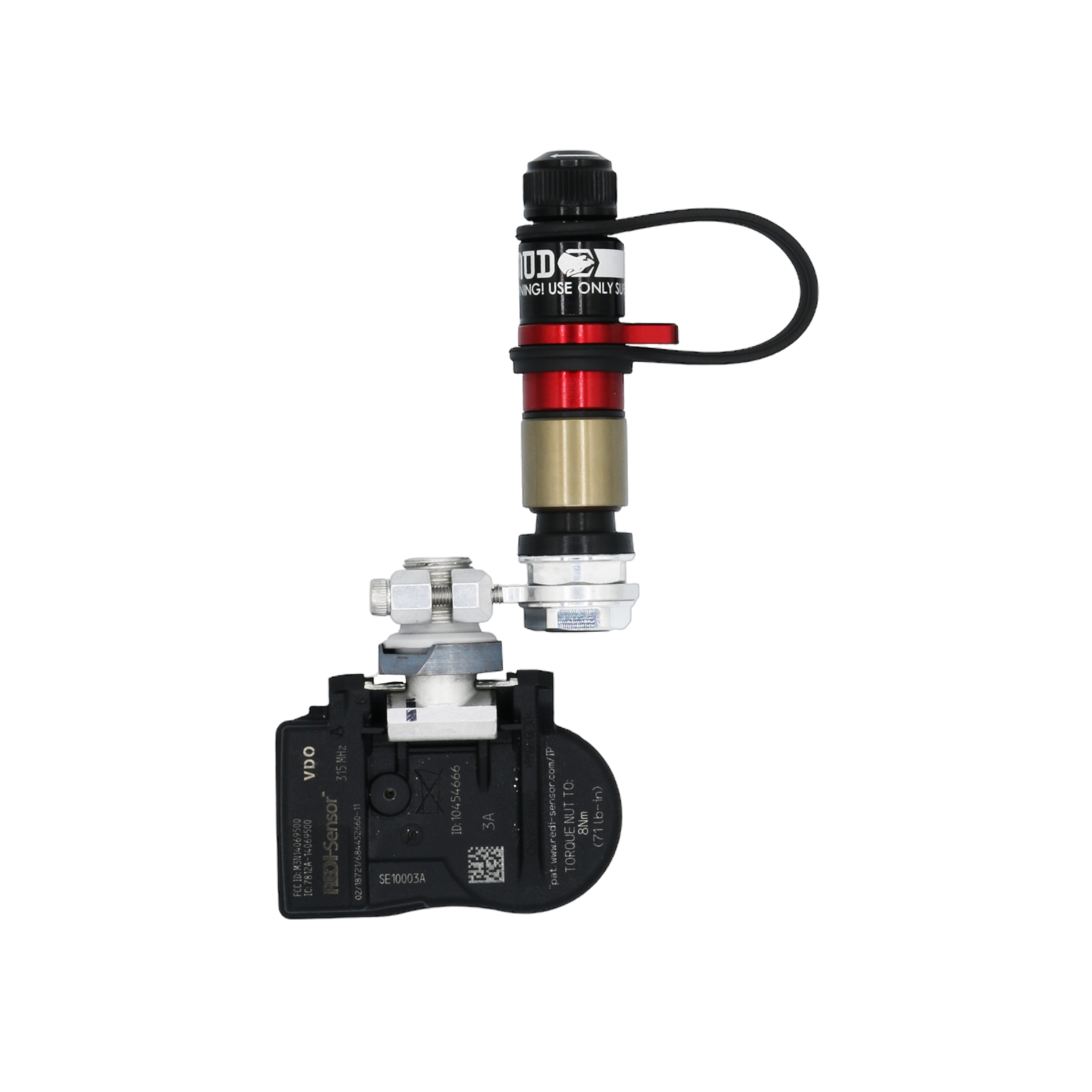

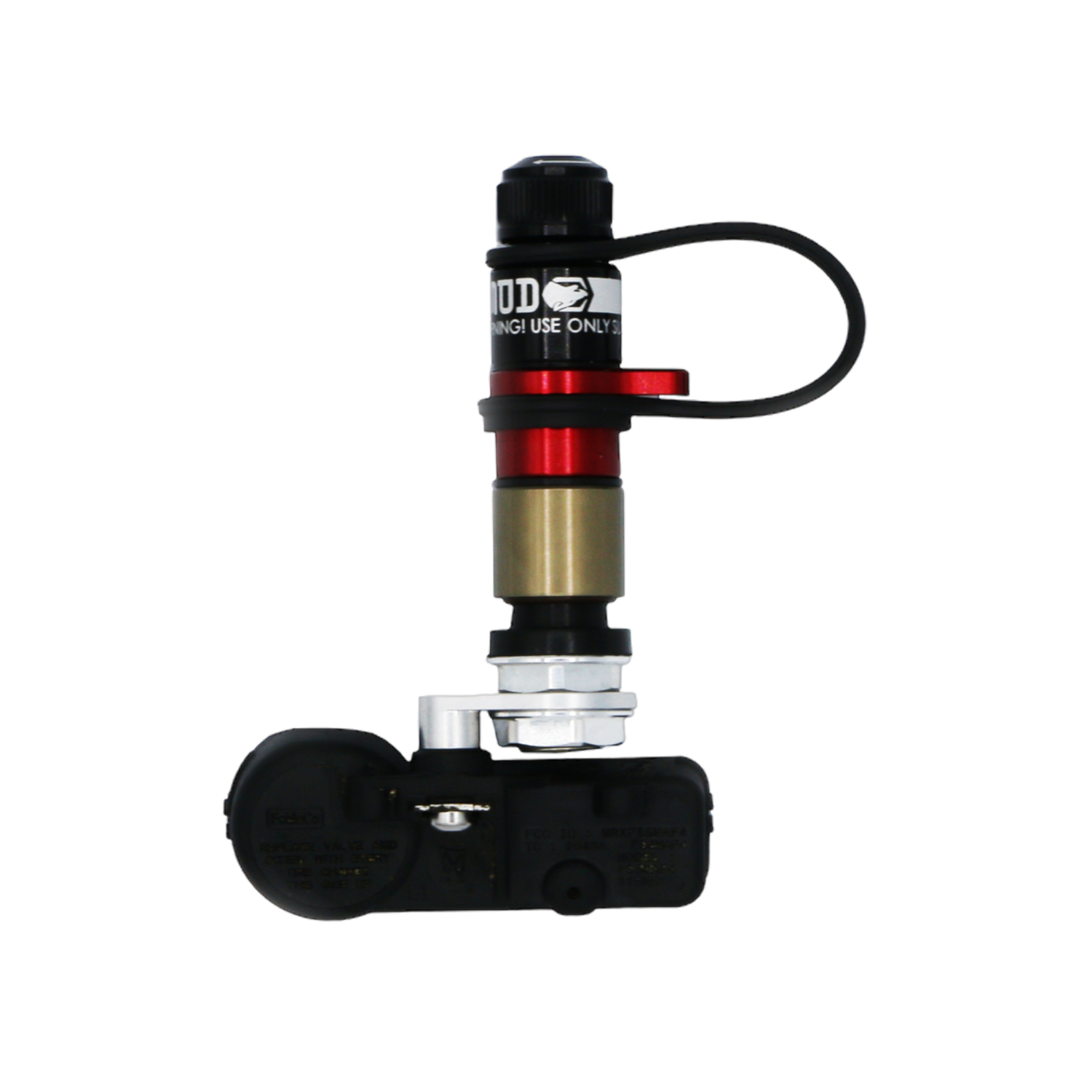

4) TPMS mount [works with VS-650/950 style TPMS, see TPMS info]
5) Fits most any wheel by replacing the valve stem [see clearance info /send us a message to be sure]
6) High grade aircraft 7075 aluminum is as strong as steel
7) Valve cap and lanyard included
8) No drilling needed!
CHUCKS COMPATIBLE WITH RPVS: APEX High Flow Chuck (Open Flow)
WE WILL NOT SHIP TO PO BOXES/FREIGHT FORWARDERS/PARCEL SERVICES. If the system recognizes your shipping address as one of the above, your order will be cancelled and method of payment refunded.
SHIPPING: A new order will be shipped up to 5 business days from the date the order placed (not including weekends or after hours). This processing time needs to be added to shipping estimates for an accurate estimate of delivery. For example: if you purchase 2 day priority shipping, you will receive your order in 3-7 business days. Customers will receive an email with tracking once order ships. Please check your spam folder if you do not see anything within the 5 business day timeframe.
APEX does not guarantee common carrier shipping times or estimates. Shipping costs are non-refundable.
These things are absolutely awesome!!! Air down in seconds. The rubber holding the cap tends to get twisted up trying to unscrew them but I’ll buy again in a heartbeat!!!
Works as advertised. Very fast deflation. Superior product performance. High build quality.
Although the product is excellent, I think the fitment description isn't. I installed these on a KMC 235 Grande Crawl bead lock with a 0 offset, and the XL that is recommended is too long, and it hit the ring. I wish I would have gotten the normal length ones so that I wouldn't have to offset the ring, but the product itself is excellent. I would rate it 5 Stars, but the suggested recommendations say a KMC 235 requires the XL. I'm guessing this is only the case for the -38 offset one.
Glad you like the product! It is always recommended that customers check for fitment when wheel design has variation based on offset and diameter. There is a video on how to measure for your specific wheel on the product page.
Recommend everyone to buy, you don’t need to find deflators again biz it’s already and every time on your tires, I also gonna buy one more pair for my Jeep.
It’s funny how a simple gadget can make life so easy for you. Giving you time to spend on important stuff like having fun.
