HIGH FLOW CHUCK (OPEN FLOW)

$25.00

Shipping calculated at checkout.

Quantity

SKU: X02-02-006

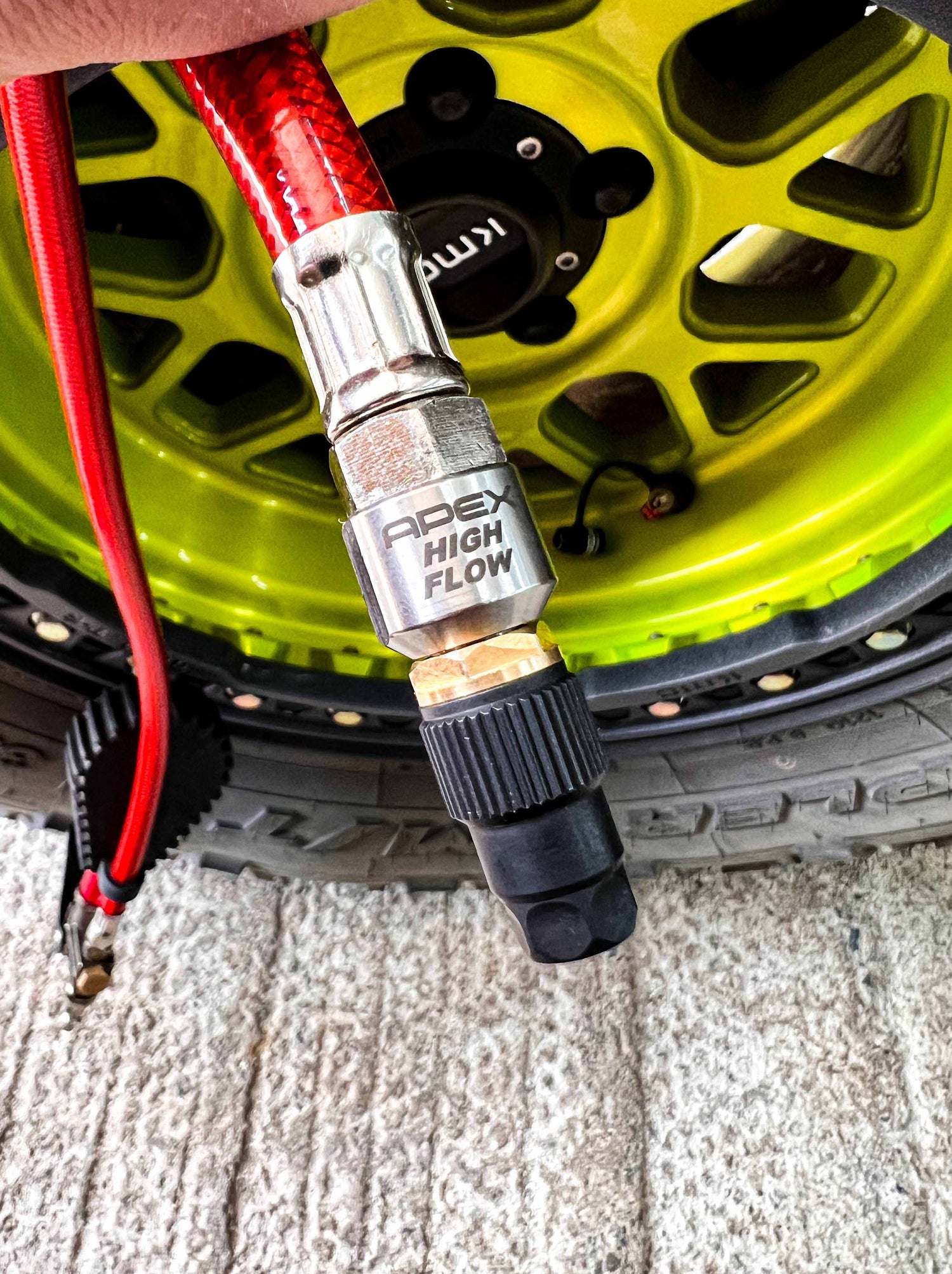

Air up faster with our High Flow Chuck!

While most standard clip on or or push on chucks only open the Schrader valve about 50%, our High Flow Chuck was designed to open the Schrader valve 100% which means more air flow allowing you to air up faster.

The High Flow Chuck was optimized to work best with our Rapid Precision Valve but still works great with standard Schrader valves.

NOTE: This air chuck will NOT work with multi-hose air down/up systems, which require a closed flow chuck. The Apex High Flow Chuck is OPEN FLOW.

SIGNATURE FEATURES

SHIPPING POLICY

RELATED PRODUCTS

SIGNATURE FEATURES

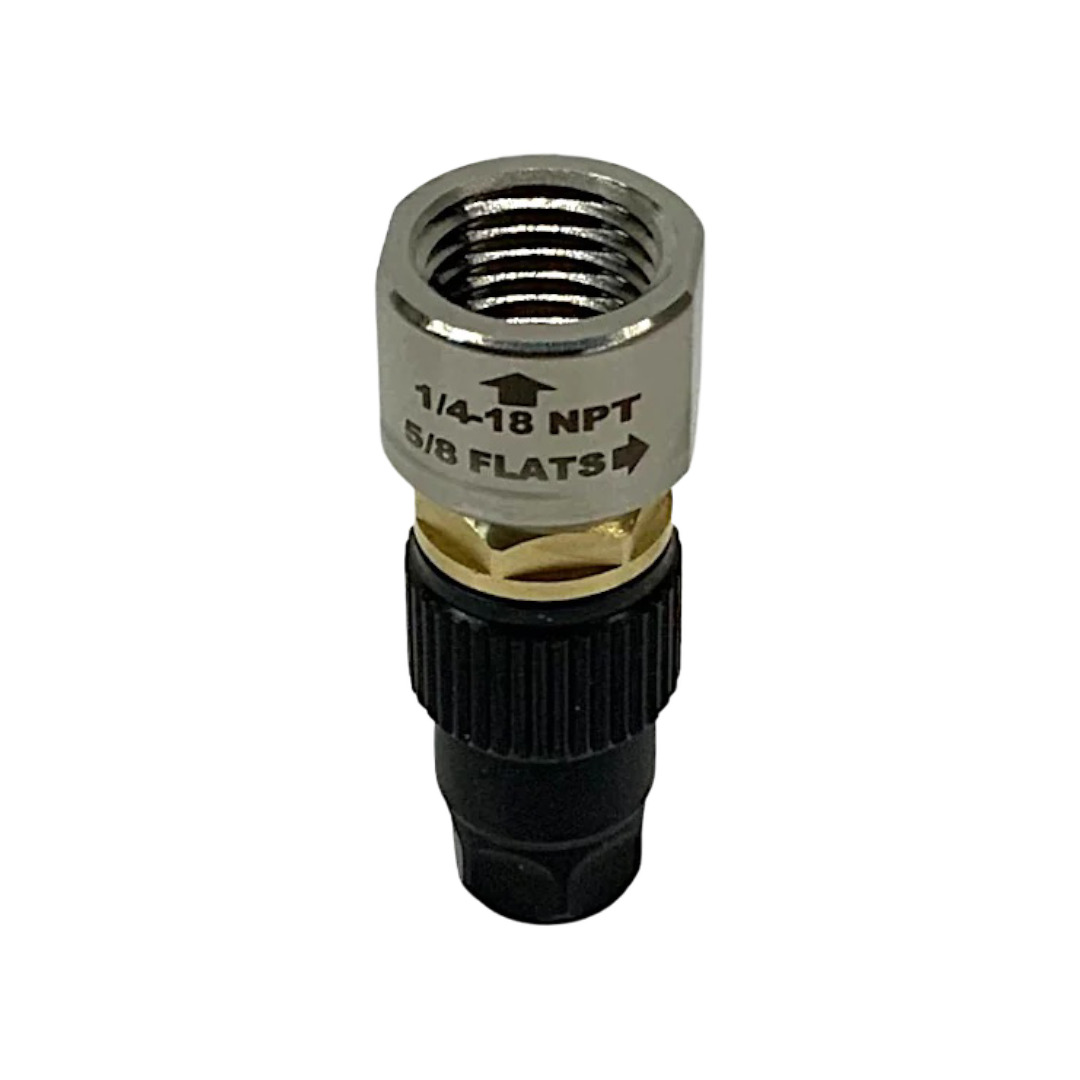

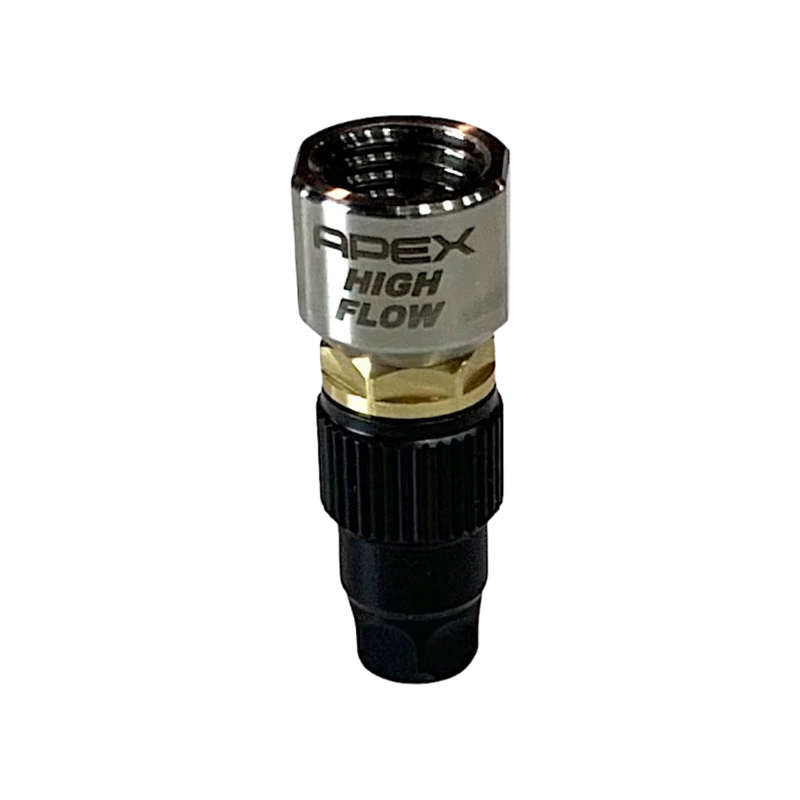

OPEN FLOW Design
The components are made to last a few lifetimes. The black part is 4140 chrome moly steel that’s heat treated and subjected to QPQ salt bath nitrocarburizing so it won’t rust (same stuff they use on military firearms). The other parts are stainless steel.
This is an open flow design for single point air up. It’s designed for the maximum amount of air flow by pushing the Schrader core ALL the way in. Most only achieve 50% or less.
It has a metal sealing seat so it won’t wear out. It’s also a thread-on design instead of a fussy push-on design. It takes a few more seconds to attach, but so does trying to get a push-on design to seal properly. This chuck will work flawlessly for decades.
It opens the Schrader valve exactly the same amount each time so there is no variability on air flow. Most chucks depend on how hard you push for airflow.

SHIPPING POLICY

WE WILL NOT SHIP TO PO BOXES/FREIGHT FORWARDERS/PARCEL SERVICES. If the system recognizes your shipping address as one of the above, your order will be cancelled and method of payment refunded.

Shipping: A new order will be shipped up to 5 business days from the date the order placed (not including weekends or after hours). This processing time needs to be added to shipping estimates for an accurate estimate of delivery. For example: if you purchase 2 day priority shipping, you will receive your order in 3-7 business days. Customers will receive an email with tracking once order ships. Please check your spam folder if you do not see anything within the 5 business day timeframe.

APEX does not guarantee common carrier shipping times or estimates. Shipping costs are non-refundable.

Great upgrade!

Great upgrade to my existing air hose.

High Flow Chuck - Works

I had purchased two of these to use in a two-hose inflation system I was building for use with the RIVs. These work really well and are easy to attach and detach. I also made an adapter for use with regular chucks.

Awesome Product

I have had this chuck for around 1 1/2 months and love it. It works as it should. Thanks Guys
