SKU X02-07-001 - $750

Finally! A high quality sway-bar disconnect for the Toyota 4Runner, Tacoma, FJ and GX. The APEX kwikLYNX allow you to easily disconnect and reconnect your sway-bar for off-road use. Doing so greatly improves your overall ride quality and off-road experience.

For Toyota/Lexus models:

  • 4Runner | 2003 - 2024 (4th & 5th Gen)
  • Tacoma | 2005 - 2024 (2nd & 3rd Gen)
  • FJ Cruiser | 2007 & Later
  • GX470 | 2003 - 2009
  • GX460 | 2010 & Later
**IMPORTANT! KWIKLYNX CAN BE ADAPTED TO THE GX460 BUT THE FACTORY KDSS SYSTEM MUST BE REMOVED. MUST SOURCE A REGULAR GX470/4RUNNER SWAYBAR TO USE IN PLACE OF THE KDSS SWAYBAR.**

 - Not compatible with aftermarket spindle gussets

 - If installing with uniball style upper control arms you will need to install using a M14 X 1.5 bolt. USE ONLY GRADE 12.9 BOLT! Bolt must not extend more that .900" from the bottom of spindle surface.

The installation of this product requires a 13MM drill bit. CLICK HERE to purchase our 13MM step drill bit.

PLEASE WATCH THE INSTALL VIDEO BEFORE ATTEMPTING TO INSTALL:  CLICK HERE TO WATCH

NOT COMPATIBLE WITH ICON DELTA BALL JOINTS - Ball joint must be M14x1.5

RELATED PRODUCTS

PRODUCT OPTIONS

Install Tools:

13mm Step Drill Bit - CLICK HERE to purchase.

SIGNATURE FEATURES

- Hard Coat Finish

- Over-center clamp allows you to easily disconnect and reconnect the sway bar in a matter of seconds.

- Designed and built to stand up to the test of time in the harshest conditions.

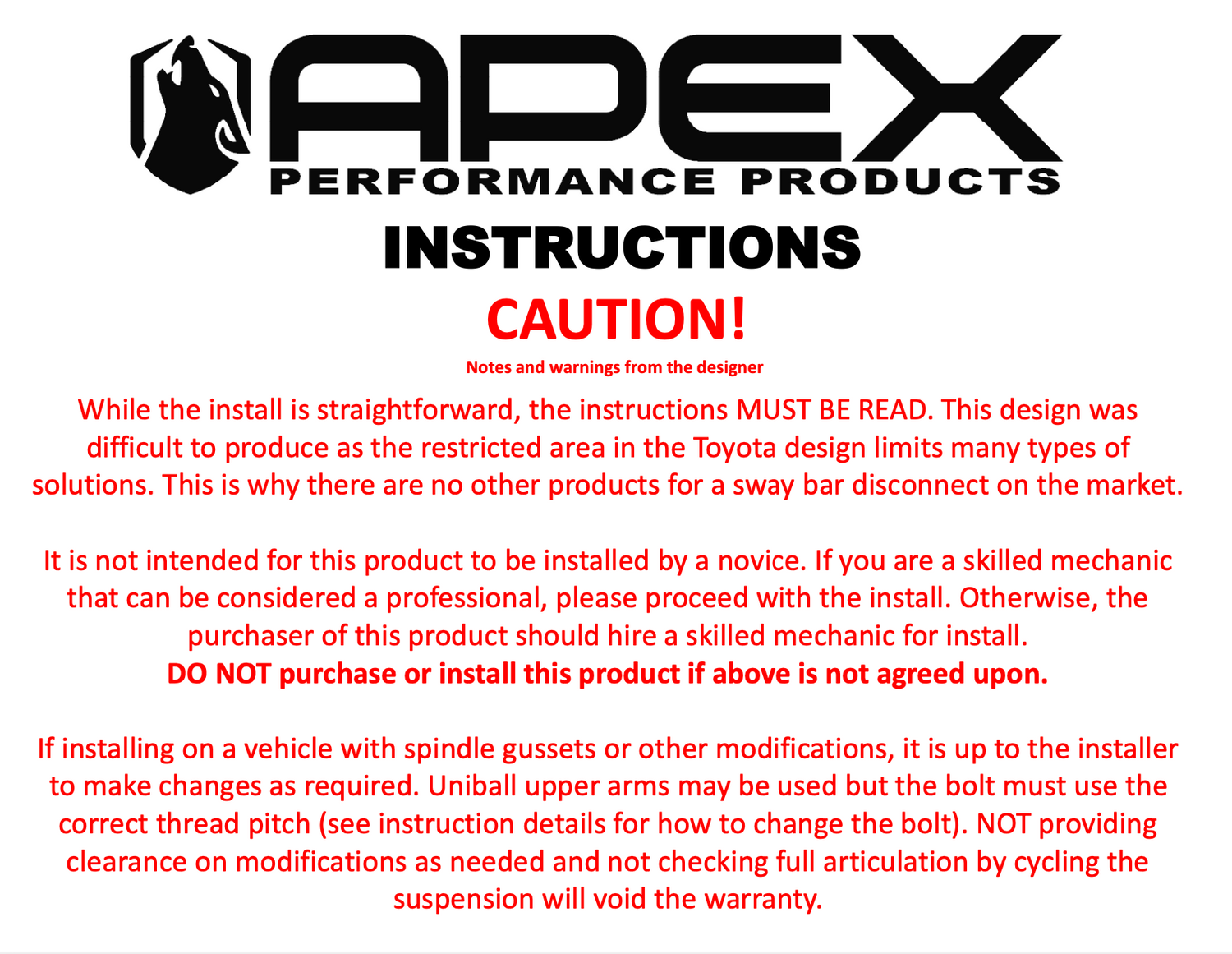

INSTALL INSTRUCTIONS

SHIPPING POLICY

WE WILL NOT SHIP TO PO BOXES/FREIGHT FORWARDERS/PARCEL SERVICES. If the system recognizes your shipping address as one of the above, your order will be cancelled and method of payment refunded.

Shipping:
  A new order will be shipped up to 5 business days from the date the order placed (not including weekends or after hours). This processing time needs to be added to shipping estimates for an accurate estimate of delivery. For example: if you purchase 2 day priority shipping, you will receive your order in 3-7 business days. Customers will receive an email with tracking once order ships.  Please check your spam folder if you do not see anything within the 5 business day timeframe.

APEX does not guarantee common carrier shipping times or estimates. Shipping costs are non-refundable.

Customer Reviews

Based on 2 reviews
0%
(0)
100%
(2)
0%
(0)
0%
(0)
0%
(0)
O
Oriol P.
Great product

The product is 100% great and it perfoms perfect. The only problem is with the istalation but maybe is because of my skills!

m
michael s.
OVERALL

so overall install wasnt that bad if you are capable. my truck isnt sketch anymore ive had no sway bar for about 2 years, the alignment of the holes for the sway brackets are off by about 3/8-1/2 inch but if you are just doing the bushing brakets its no issue, i have reservoir brackets that i had to modify to line up with the new holes, then realized i didnt need to. take your time with the sway bar holes their recommendations for the drilling time is proper and the instructions are great. i cut a little too much off for the shock bracket but plan to weld it back together for strength. the valve for the shock is a pain to get to in the up position but possible. so far no complaints and feels nice and tight, the included crowsfoot for the links is nice although be careful is is soft since its just cut from mild steel.
